Rotating lifting beam is a kind of equipment used for precise lifting and positioning of heavy objects. Its main function is to enable the load to change direction flexibly during the lifting process through a rotating mechanism. It is widely used in places where high-precision operations are required, such as clean rooms, manufacturing workshops, logistics centers, etc., and is particularly suitable for scenes where the direction of materials or the lifting angle need to be adjusted frequently. Rotating lifting beam can improve work efficiency, optimize the material handling process, and ensure the safety and stability of operations.
Design structure of rotating lifting beam

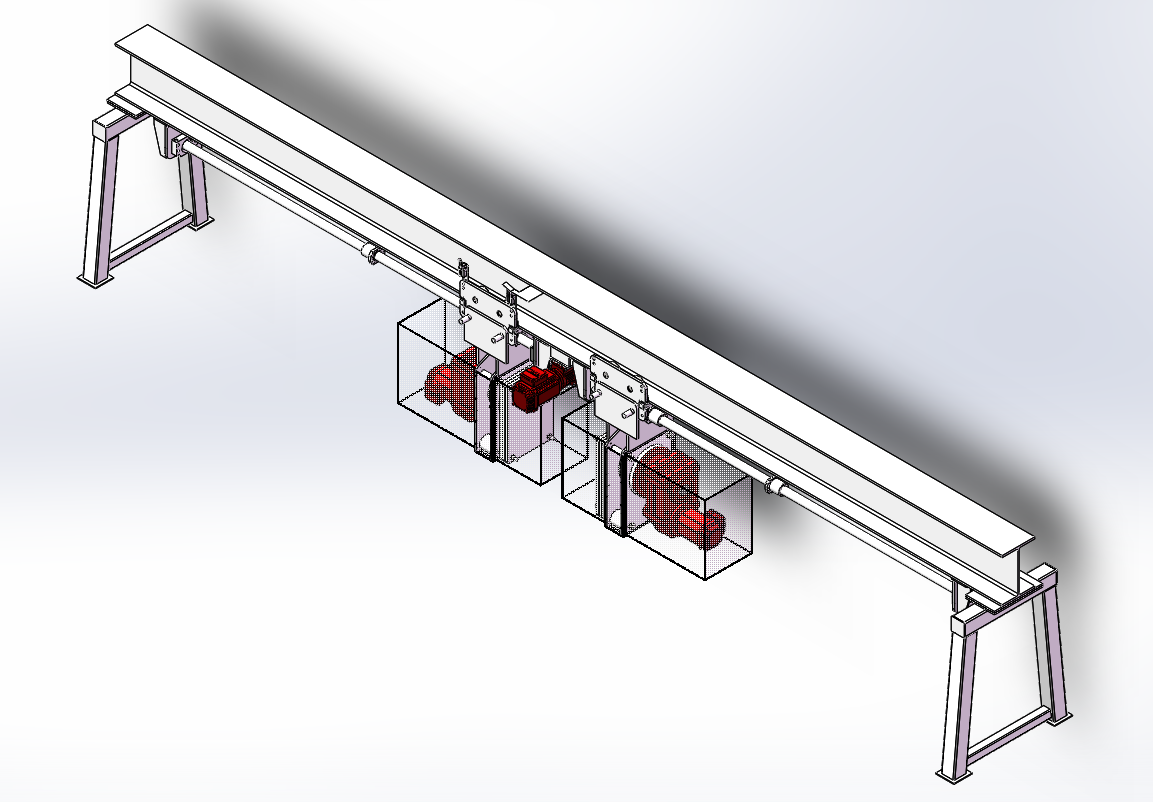

Rotating lifting beam usually consists of a sturdy beam body, a rotating shaft, a support system and a drive device. The beam body is usually made of high-strength steel or aluminum alloy materials, with good load-bearing capacity and durability. The rotating shaft is connected to the beam body through a precision bearing or electric drive system to ensure smooth and smooth rotation operation. The support system usually includes brackets, fixing devices, etc., which are used to firmly fix the lifting beam to prevent unnecessary vibration or deviation during rotation. The drive device is controlled by an electric drive method to control the rotation angle and speed. The whole set of structural design is compact and stable, capable of withstanding large loads, while ensuring safety and efficiency under various working conditions.
Technical features of rotating lifting beam
● Equipped with precise control system to ensure smooth angle adjustment during rotation.
● Using high-quality rotating shafts and bearings to ensure smooth and stable movement of loads during lifting and rotation.
● The rotation angle can be adjusted to meet different working environments and operation requirements.
● Using high-strength materials and precise structural design to ensure safe lifting of heavy materials.
● Customized size, rotation range, load capacity, etc. can be provided according to customer needs to provide personalized solutions.
The rotating lifting beam for flipping loads is widely used in many industries and scenarios, including precast concrete elements, machinery, steel structures, stored goods and building materials. In these environments, the rotating lifting beam can efficiently adjust the direction of materials through flexible rotation and load flipping functions to meet special needs such as precision processing, assembly and handling, especially suitable for occasions with limited space or frequent adjustment of material position.
