Load turning device is a professional equipment for flipping and positioning heavy workpieces. It flips the workpiece from one surface to another smoothly through mechanical or hydraulic devices. It is widely used in manufacturing, welding, assembly and testing. Its core function is to improve the efficiency and safety of workpiece handling, especially for processing workpieces with complex shapes, heavy weight and precise positioning. Load turning device can be equipped with intelligent control system according to demand, support automatic operation and multi-angle flipping, and is an important equipment for optimizing operation process and improving production quality in modern industrial production.

Load turning device works with power device through precise mechanical transmission system to achieve 360-degree rotation and flipping. Its core is powered by motor or hydraulic system, and power is transmitted to flipping device through gears, chains, belts or hydraulic cylinders to drive the flipping frame of fixed workpiece to complete stable rotation or flipping operation. Combined with PLC control system, load turning device can accurately adjust angle, speed and direction to ensure safe and efficient flipping process, suitable for various industrial scenarios requiring multi-angle operation.

Common load turning device types

Belt load turning device

  ● Features: The workpiece is flipped by clamping it with flexible belt, which is suitable for workpieces with irregular shape and fragile surface.

  ● Advantages: Smooth operation, avoiding damage to the workpiece by hard structures, suitable for wind turbine blades, aviation components, etc.

  ● Application scenarios: wind power industry, aviation manufacturing and automobile manufacturing.

Chain load turning device

  ● Features: High-strength chain is used as the main transmission element to drive the workpiece to turn over.

  ● Advantages: It has high strength and wear resistance, suitable for turning over heavy workpieces.

  ● Application scenarios: Suitable for turning over large steel, molds, and equipment bodies.

Lifting and Rotating Beam

  ● Features: It uses a rigid structure such as a steel beam to clamp the workpiece, and is often equipped with an electric or hydraulic drive device.

  ● Advantages: Suitable for high-load workpieces, high stability, and precise turning.

  ● Application scenarios: steel structure processing, large mechanical parts production.

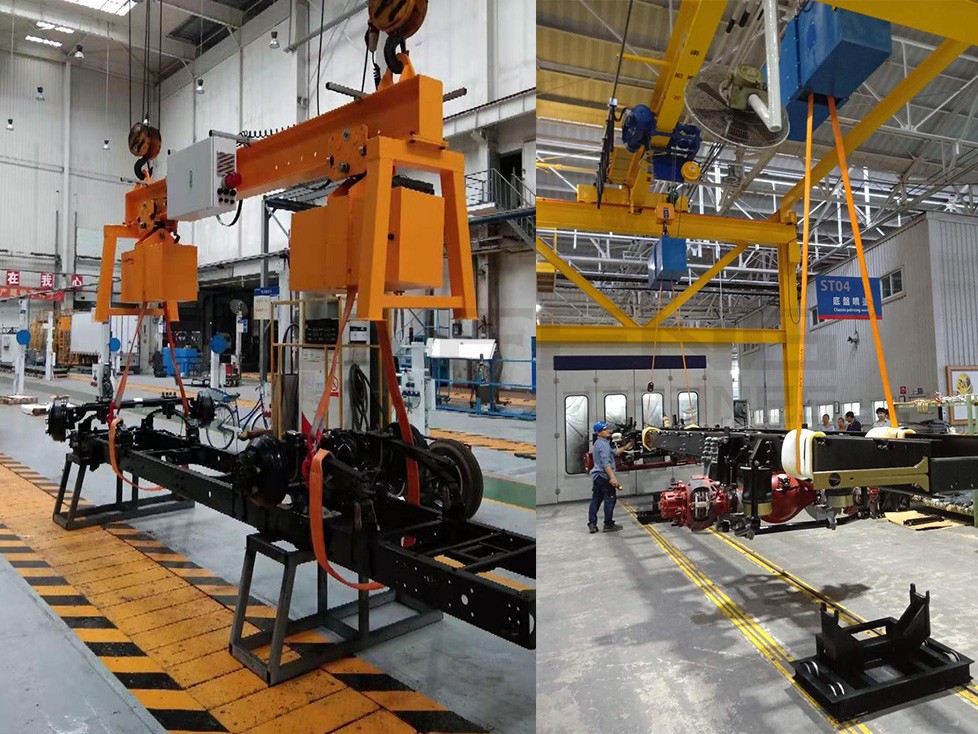

Electric load turning units

  ● Features: It is driven by a motor, usually combined with a PLC control system, and has high-precision turning capabilities.

  ● Advantages: Low energy consumption, precise control, and can realize automated production.

  ● Application scenarios: automobile chassis turning, home appliance manufacturing.

As a professional load turning device manufacturer, KUNFENG CRANES has always been committed to providing high-quality and high-performance turning solutions to global customers. With advanced manufacturing technology, strict quality control and professional after-sales service, our load turning device has been widely used in many industries such as automobile manufacturing, heavy machinery, wind power equipment, etc. Contact us now to get a free custom design plan and preferential quotation!
